Claudio, parts and some links

Claudio consists of just five (or six) components, the wiring between them and code. No resistors, capacitors, diodes… no discrete components apart from 3 five cents of € coins. 😉

List of components:

  1. ESP32 Development Board: I’ve tested two different boards, and though they are very similar the results were not the same.
    ESP32 Development Boards Front
    ESP32 Development Boards Front

    ESP32 Development Boards Back
    ESP32 Development Boards Back

    Price: US $7
    The first one was the one on the right side. It is a board I bought a year ago and it was working fine (for small tests) since then. When I first tried to put all the components together I noticed that ILI9341 TFT Display and WiFi connection were not good friends working at the same time. After 3 or 4 display operations (text, area fill, …) the screen went always blank and only when WiFi library was loaded. I tried multiple pin configurations, alternate libraries loading order. I tested voltage on each significant pin (D/C, CLOCK, MOSI) and no result.
    Finally, I decided to give a try one of the last boards I bought: the model on the left side. The result was successful. No blank screen. But, these boards have a bug design: they don’t allow uploading schemas directly from Arduino IDE (Error: Timed out waiting for packet header) and you have to ‘play’ with EN and BOOT buttons every time.
    Workaround: once Arduino IDE tries to upload the schema, press BOOT and without releasing it press also EN button, wait for a half second, release EN and when IDE stops waiting and starts the uploading you can release BOOT button.

    Error Time_out_waiting_for_packet_header
    Error uploading schema from Arduino IDE

    ebay.com search for ESP32 Dev Board
  2. ILI9341TFT Screen – SPI
    Again, the component I had at home was about one year old. The only difference is that the one you can find now implements a set of pins to control a touch panel (though they say at the product description “non-touch”). Anyway, I think the one is being sold now is perfectly compatible with the previous model.
    What we need for this design is a model with an SPI pin configuration. Sellers usually refer to these as “driven with at least four IO”
    Price: US $7
    ILI9341 SPI TFT Display
    ILI9341 SPI TFT Display
     Sample ebay.com link to ILI9341

  3. DHT-11 Temperature and Humidity Sensor
    This is a low-cost sensor very easy to use. Though it has four pins, only three of them have a function (the other one is not connected).
    Simply connect ground pin to GND, VCC pin to 3V3 and Data Out pin to any ESP32 IO pin.
    Depending on the range of temperature/humidity you need to measure, you should take a look also to DHT-22 sensor (which implements a wider range and more accuracy), but in my case, 0-50ºC/20-80%R.H. is quite enough.
    Price: US $1
    DHT-110 Temperature and Relative Humidity sensor

    ebay.com link to DHT11 search

  4. BH1750FVI Digital Light Intensity Sensor
    I think the best feature of this sensor is, apart from ease of use, the sensibility and stability.
    It measures ambient light and gives the result in Lux.
    It has 5 pins, but once again we can ignore one of them (ADD) by connecting it to GND. So, we only need two ESP32 IO pins to connect  SDA and SCL sensor pins.
    GND and VCC pins go to GND and 3V3 ESP32 pins respectively.
    Price: US $1

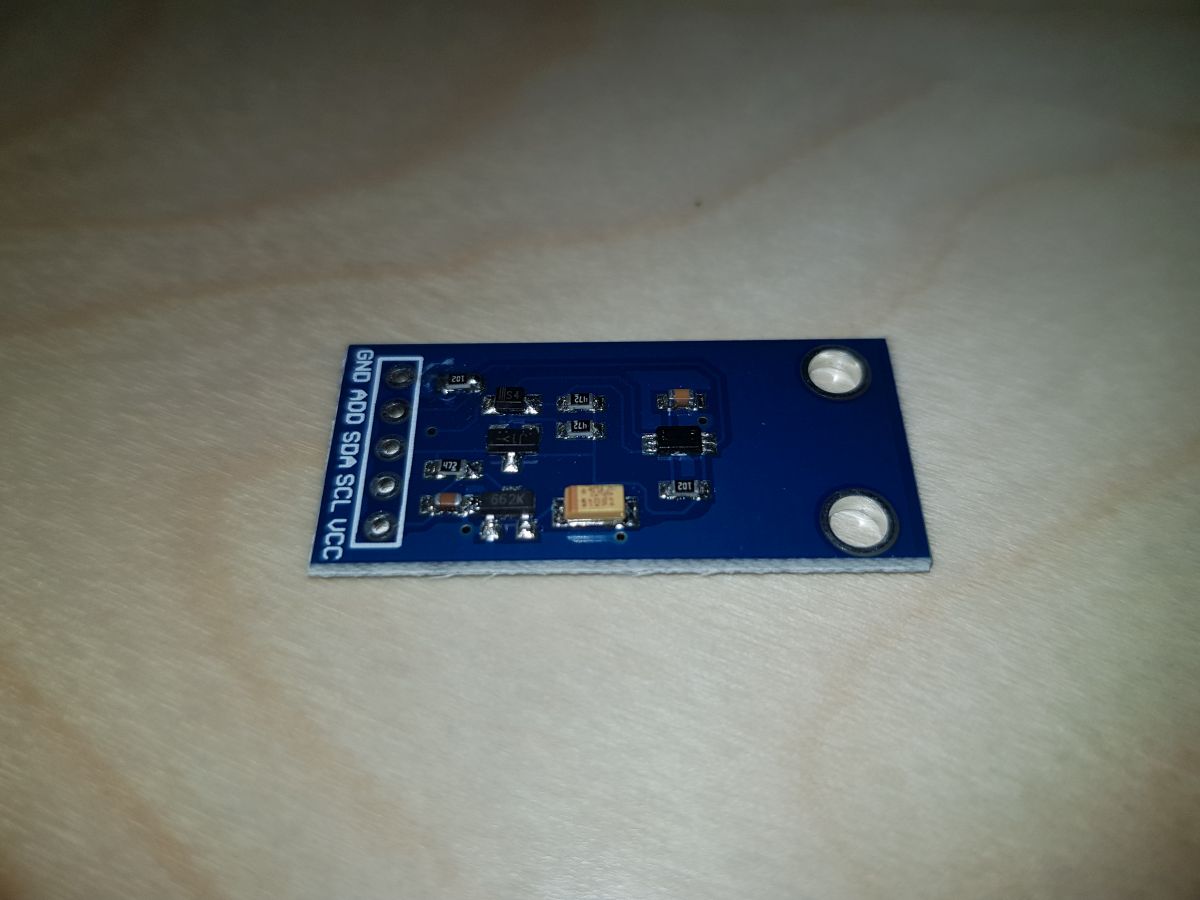

    BH1750FVI Ambient Light Sensor
    BH1750FVI Ambient Light Sensor
    ebay.com link to BH1750FVI search

  5. Passive Piezo Buzzer
    The most basic part of the system.
    Just two pins (the middle one can be ignored), one goes to GND and the other one to an ESP32 IO pin.
    Price: US $0.2
    Passive Piezo Buzzer
    Passive Piezo Buzzer

    ebay.com link to Piezo Buzzer search

  6. Touch sensors (5 cents of € coins)
    Each one connected to an ESP32 Touch pin.
    Price: 0.15€
    5 cents euro coin
    5 cents euro coin
    Mounted coin touch sensors
    Mounted coin touch sensors

ESP32 and ILI9341 ISP mode

After trying several options that I found on the web, I chose this one as the better to connect an ESP32 to an ILI9341 TFT display.

ESP32 ILI9341
3V3 VCC
GND GND
D15 CS
D2 RESET
D4 D/C
D23 MOSI
D18 SCK
Not connected MISO
3V3 (***or D19) LED

The code:

/**
 * ILI9341 TFT libraries and resources
 */
const int TFT_CS = 15;
const int TFT_DC = 4;
const int TFT_MOSI = 23;
const int TFT_SLK = 18;
const int TFT_RST = 2;
const int TFT_LED = 19;

#include "SPI.h"
#include "Adafruit_GFX.h"
#include "Adafruit_ILI9341.h"
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_SLK, TFT_RST);

void setup() {
  tft.begin();
  tft.setRotation(3); //Landscape orientation
}

The reason for the two possibilities for the LED pin is the next:

If you connect LED pin directly to 3V3 you will get maximum brightness in your screen. LED pin controls the backlight of your TFT display.

In my case, I didn’t want to have max brightness but I wanted to control the intensity based on ambient light, so I decided to connect LED pin to any of the IO pins of the ESP32 (#19 in the showed example).

The code to control backlight intensity (once you have connected LED to pin D19) is as follows:

.
const int TFT_LED = 19;
.
/**
 * PWM Constants
 */
const int freq = 5000;
const int tftledChannel = 0;
const int resolution = 8;
.
.
.
void setup() {
.
.
.
  /**
   * TFT DISPLAY
   */
  //Background light PWM
  ledcSetup(tftledChannel, freq, resolution);
  ledcAttachPin(19, tftledChannel);
.
.
}

/**
 * Sets TFT background luminosity (0-255)
 */
void setBGLuminosity(int level){
  ledcWrite(tftledChannel, level);
}

Inserting the code above allows you to set the backlight intensity at any point just invoking setBGLuminosity() function passing a value between 0 and 255.



//Examples:
setBGLuminosity(0);   //Switch off screen backlight
setBGLuminosity(128); //Medium intensity (theoretically)
setBGLuminosity(255); //Full intensity
